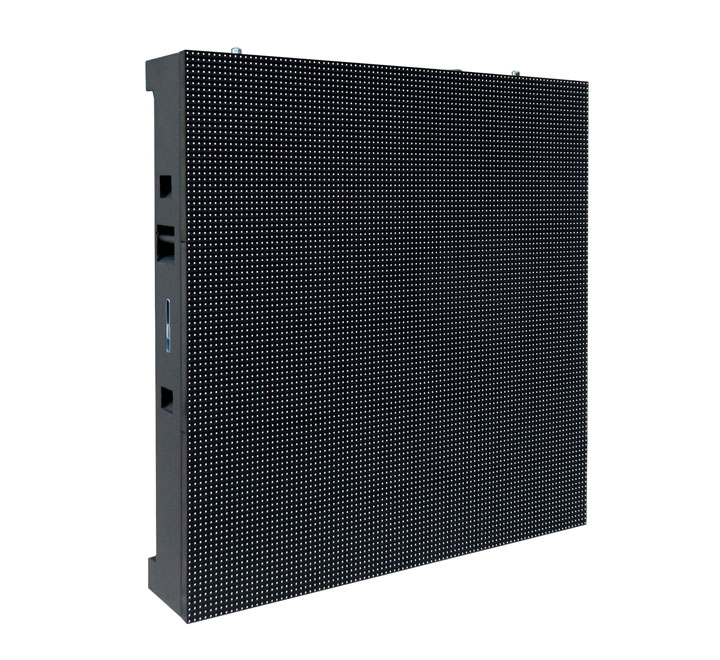

  • FO 1

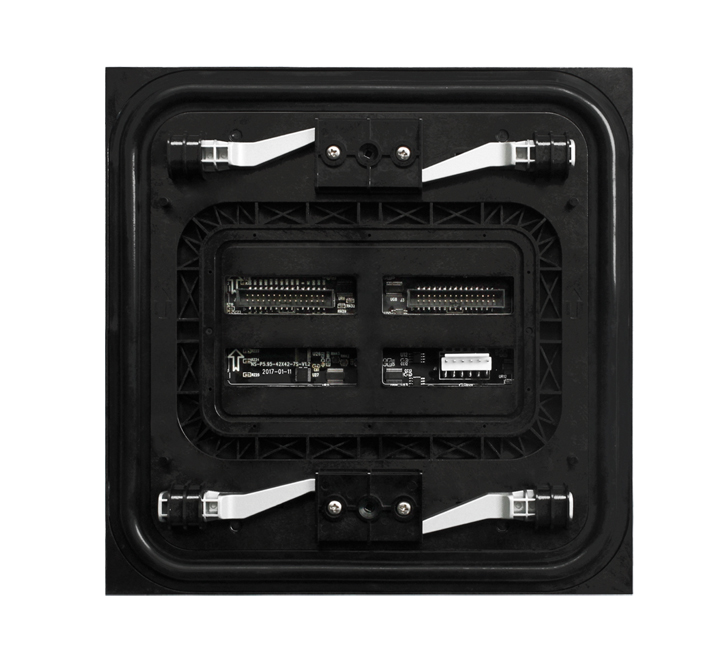

  • FO 2

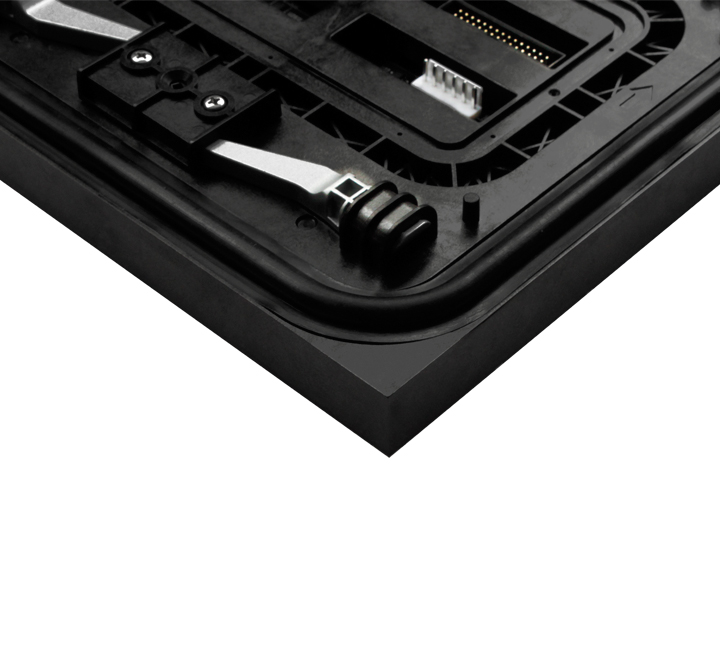

  • FO 3

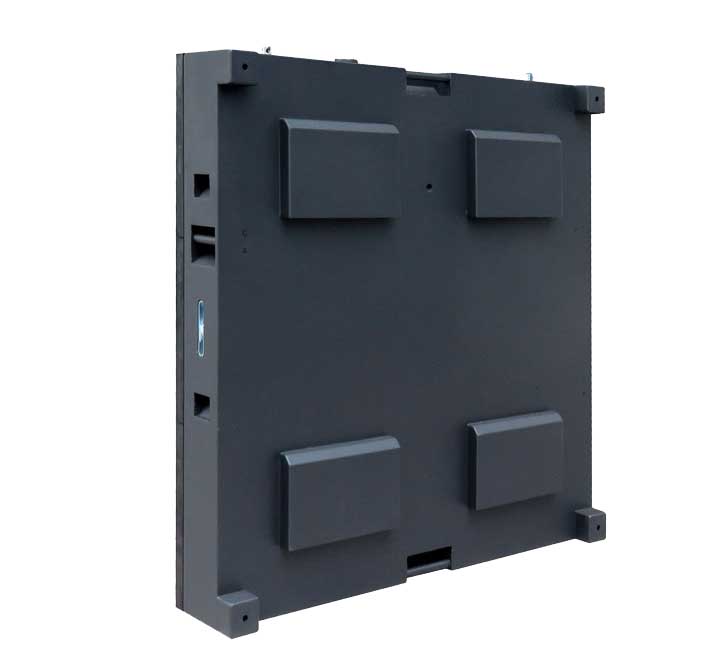

  • FO 4

FO Series outdoor

Outdoor fixed application, it’s one of your high resolution choices, widely used for billboard and facade solution. Small difference from typical size, this type of module is 250x250mm, and the cabinet size is 1000x1000mm, full front and rear maintenance.

Characteristic

HD outdor display.

Refresh rate no less than 3840Hz.

Cabinet size 1000x1000x135mm for fast installation.

Special module design for full front and rear maintenance.


Specifications

Accessory

Gallery

Model FO3.9 FO4.8 FO5.9
Pixel Pitch-mm 3.91 4.8 5.95
Pixel Density-pixels/m2 65410 43403 28247
LED type SMD1921 SMD1921 SMD1921
Module Dimension 250 x 250mm 250 x 250mm 250 x 250mm
Module Resolution 64 x 64 52 x 52 42 x 42
Panel Dimension 1000 x 1000 x 135mm 1000 x 1000 x 135mm 1000 x 1000 x 135mm
Panel Resolution 256 x 256 208 x 208 168 x 168
Panel Mateiral& Weight  Steel 45 kg Steel 45 kg Steel 45 kg
Typical Brightness(nits) 5500 5500 5500
Viewing Angle H160°/V140° H160°/V140° H160°/V140°
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz
Operating Power Source 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²) 860 872 890
Avg. Power Consumption  (W/m²) 275 279 285
Serviceability Front&Rear Front&Rear Front&Rear
IP Rating IP65(Outdoor) IP65(Outdoor) IP65(Outdoor)
Operating Temp/Humidity -20°~ 55°C, 10~90% RH  -20°~ 55°C, 10~90% RH  -20°~ 55°C, 10~90% RH
Storage Temp/Humidity -40°~ 60°C, 10~90% RH  -40°~ 60°C, 10~90% RH  -40°~ 60°C, 10~90% RH
Life Span 100,000 h 100,000 h 100,000 h

Note: The Specifications are for reference, actual values may vary.
