QR Series -BGLOPTO

QR Series for xR Stage

The aim of QR series is to comprise the latest technology into LED wall and make innova-tion for live entertainment, ﬁlm and TV pro-duction, broadcast etc. It provides solutions with pixel pitch range from 1.95mm to 2.6mm, with identical perfect on-camera performance, this premier led screen is built for film industry and xR Stages, can help you make a real world by building a dynamic video wall.

Characteristic

Special for xR stage

Refresh cycles.
16bits.
Extremely low moire issues.
Brompton hydra calibration.
High level color space for DCI-P3 and Rec.2020.
TRUE HDR Technology.
Anti-reflective matt black leds.
Super black shader and high contrast ratio.

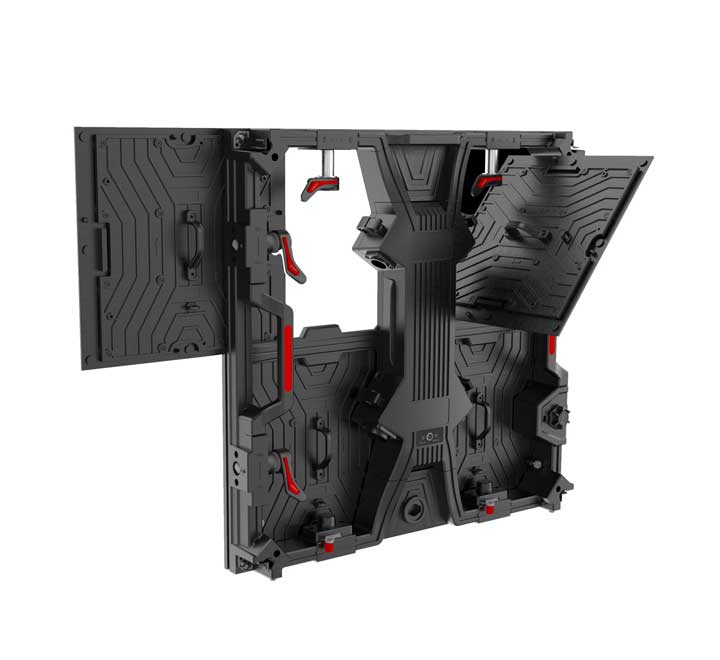

Super Thin 68mm and lighter than 8.2kg.
High Refresh rates 7680HZ.
Special concave curved design.

Specifications

Accessory

Gallery

Model	QR1.9	QR2.3	QR2.6
Pixel Pitch(mm)	1.95	2.31	2.6
Pixel Density(pixels/m2)	262,985	187,403	147,929
LED type	SMD1212(Customized) Matt black anti-glare	SMD1212(Customized) Matt black anti-glare	SMD1515(Customized) Matt black anti-glare
Mask level	Super black level High Contrast Ratio	Super black level High Contrast Ratio	Super black level High Contrast Ratio
Module Dimension	250 x 250mm 9.85” x 9.85”	250 x 250mm 9.85” x 9.85”	250 x 250mm 9.85” x 9.85”
Module Resolution	128 x 128	108 x 108	96 x 96

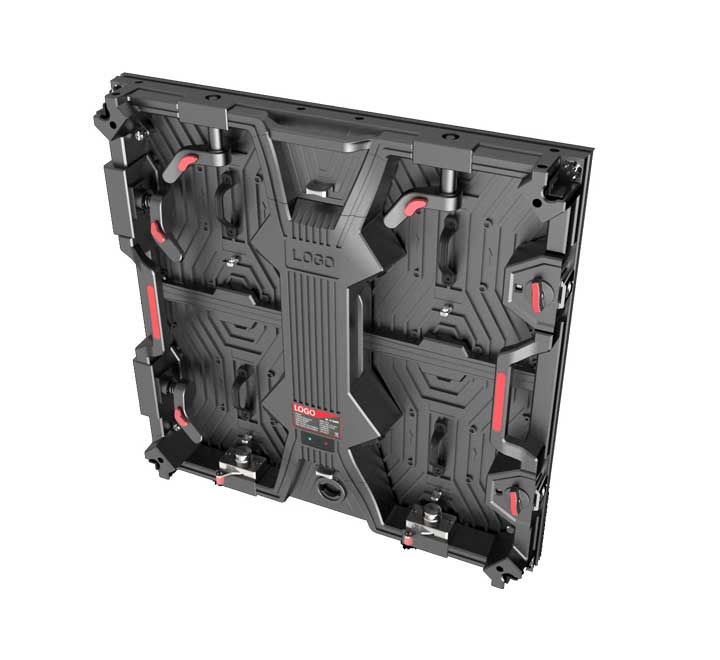

Panel Dimension	500 x 500 x 68mm 19.7” x 19.7” x 2.68”	500 x 500 x 68mm 19.7” x 19.7” x 2.68”	500 x 500 x 68mm 19.7” x 19.7” x 2.68”
Panel Resolution	256 x 256	216 x 216	192 x 192
Panel Type and Material	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium
Panel Weight?	8.2 kg (18 lbs)	8.2 kg (18 lbs)	8.2 kg (18 lbs)
Typical Brightness(nits)	≥800 nits	≥1200 nits	≥1200 nits
Viewing Angle	H160°/V160°	H160°/V160°	H160°/V160°
Multiplexing(scan)	8	9	8
Refresh Rate	7680Hz	7680Hz	7680Hz
Controller System?	BROMPTON	BROMPTON	BROMPTON
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m2)	720	732	715
Avg. Power Consumption? (W/m2)	230	234	229
Serviceability	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)
Operating Temp/Humidity	-20°~ 50°C, 10~90% RH	-20°~ 50°C, 10~90% RH	-20°~ 50°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h
Curving (Concave)	YES	YES	YES
BTU Max/Average (Estimated)	536 / 238	536 / 238	536 / 238

Note: The Specifications are for reference, actual values may vary.
