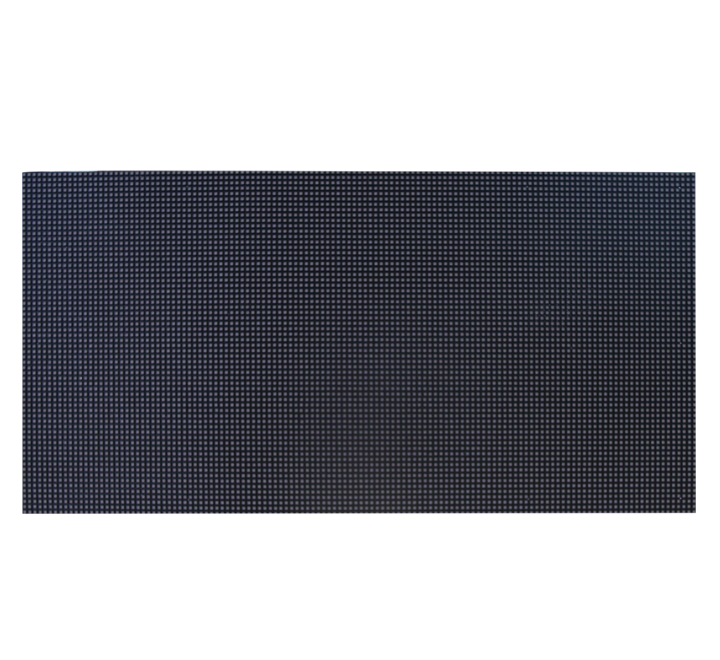

  • Flex 1

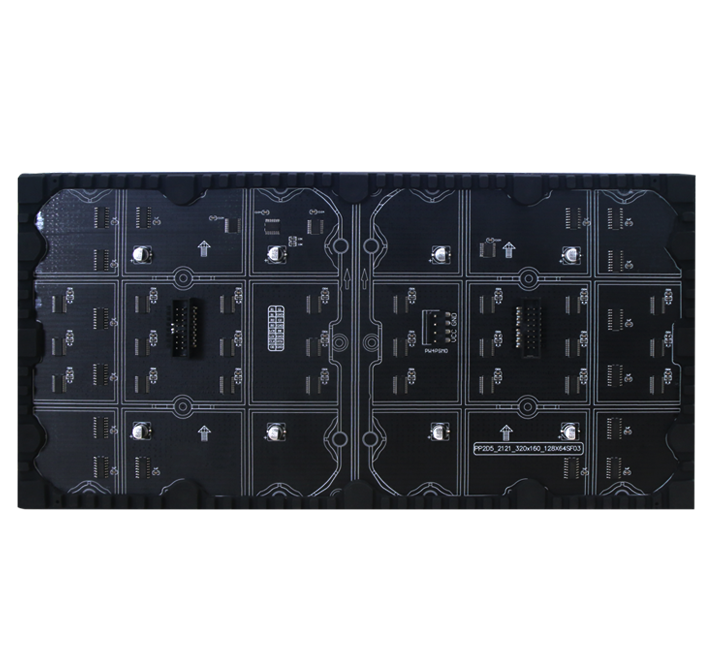

  • Flex 2

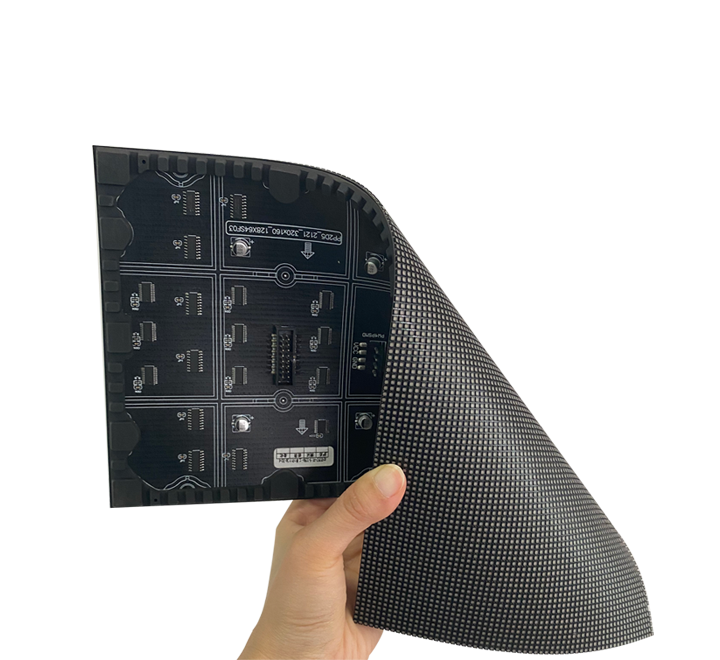

  • Flex 3

Flex Series indoor

Flex series is a kind of soft module with soft material PCB, strong flexibility, the curve angle of whole screen can be customized, such as cylinder screen, wave screen, and various of special-shaped creative curve screen.

Characteristic

Great flexibility, being able to be curved easily.

Anti-blue light, avoid visual vatigue.

Ultra-high refresh ratio.

Energy-saving.

Multiple  installation types, personalized design.

High contrast ratio and gray scale.

Specifications

Accessory

Gallery

Model Flex1.6 Flex1.875 Flex2.5
Pixel Pitch-mm 1.667 1.875 2.5
Pixel Density-pixels/m2 359856 284444 160000
LED type SMD1010  SMD1010 SMD1515
Module Dimension 240 x 120mm 240 x 120mm 320 x 160mm
Module Resolution 144 x 72 128 x 64 128 x 64
Module Weight  0.75kg 0.75kg 0.75kg
Typical Brightness(nits) 800 800 800
Viewing Angle H160°/V160° H160°/V140° H160°/V140°
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz
Operating Power Source 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²) 720 732 718
Avg. Power Consumption  (W/m²) 230 234 230
Serviceability Front Front Front
IP Rating IP43(Indoor) IP43(Indoor) IP43(Indoor)
Operating Temp/Humidity -20°~ 55°C, 10~90% RH  -20°~ 55°C, 10~90% RH  -20°~ 55°C, 10~90% RH
Storage Temp/Humidity -40°~ 60°C, 10~90% RH  -40°~ 60°C, 10~90% RH  -40°~ 60°C, 10~90% RH
Life Span 100,000 h 100,000 h 100,000 h

Note: The Specifications are for reference, actual values may vary.
