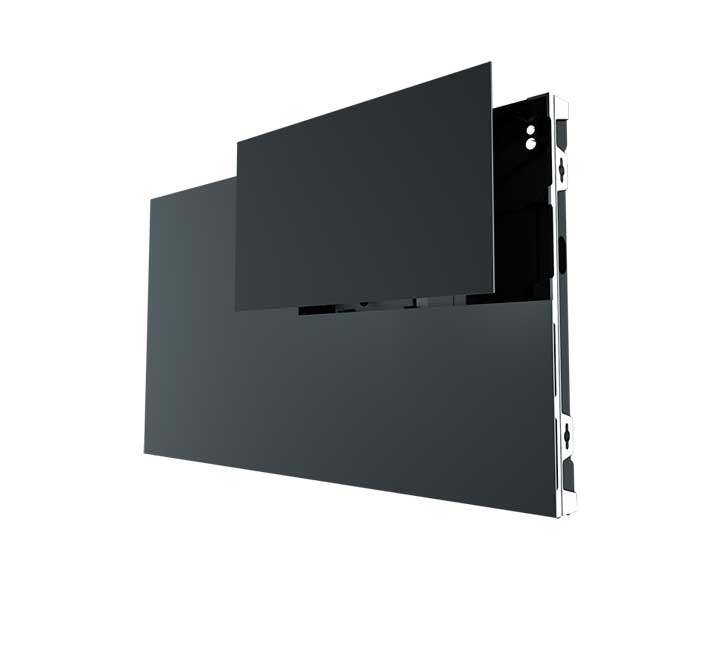

TD Series Indoor SMD GOB

TD series is indoor HD display, which is perfect 16:9 display ratio and can be spliced into standard resolution of 2K/4K/8K.

Featuring pixel pitches ranging from 0.9375mm to 1.875mm, it delivers stunning visuals with exceptional detail and color accuracy, and enables seamless integration into concave or convex surfaces or other creative shapes.

Whether used in retail environments, exhibition spaces, or event stages, the ability to curve the display adds an immersive and dynamic dimension to any environment.

Characteristic

Seamless Integration and 16:9.

HD display.

Creative for curve display.

Reliability and Durability.

Easy Installation and Maintenance.

Specifications

Accessory

Gallery

Model	TD0.9	TD1.2	TD1.5	TD1.8
Pixel Pitch(mm)	0.9375	1.25	1.5625	1.875
Pixel Density(pixels/m2)	1,137,778	640,000	409,600	284,444
LED type	IMD4 IN 1	SMD 3 IN 1	SMD 3 IN 1	SMD 3 IN 1
Module Dimension	150 x 168.75mm (5.90 x 6.65 in)	150 x 168.75mm (5.90 x 6.65 in)	150 x 168.75mm (5.90 x 6.65 in)	150 x 168.75mm (5.90 x 6.65 in)
Module Resolution	160 x 180	120 x 135	96 x 108	80 x 90

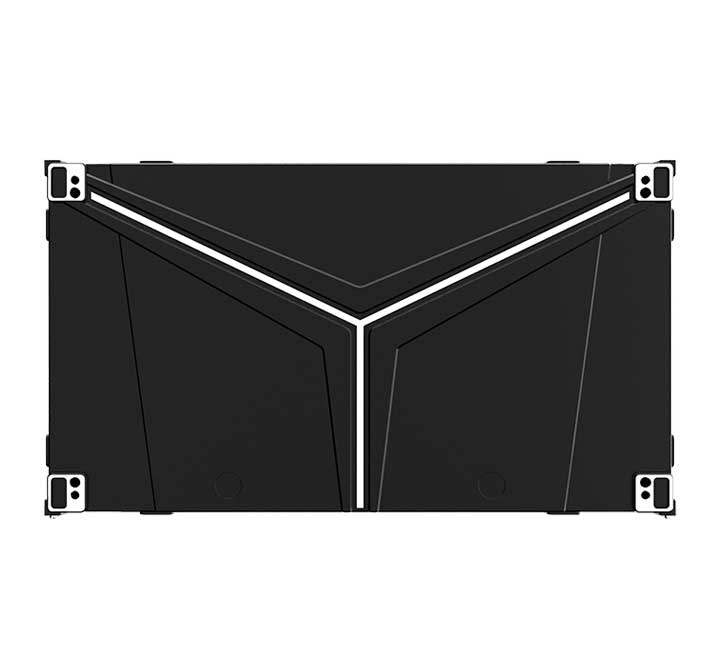

Cabinet Dimension	600 x 337.5 x 39 mm	600 x 337.5 x 39 mm	600 x 337.5 x 39 mm	600 x 337.5 x 39 mm
Cabinet Resolution	640 x 360	480 x 270	384 x 216	320 x 180
Cabinet Type and Material	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium
Cabinet Weight	5 kg	5 kg	5 kg	5 kg
Viewing Angle	H160°/V160°	H160°/V160°	H160°/V160°	H160°/V160°
Brightness	≥800 nits	≥800 nits	≥800 nits	≥800 nits
Refresh Rate	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption	720 W/m²	750 W/m²	720 W/m²	750 W/m²
Avg. Power Consumption	215 W/m²	260 W/m²	215 W/m²	260 W/m²

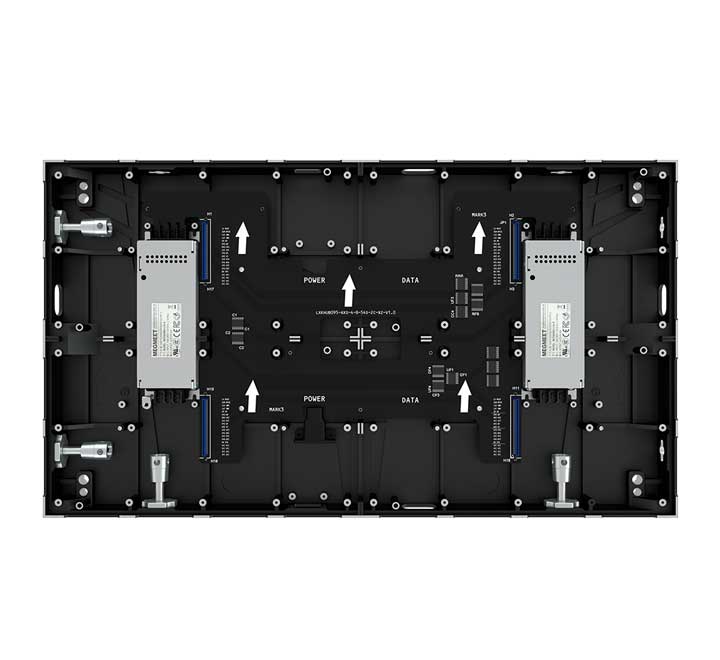

Serviceability	Front	Front	Front	Front
IP Rating	IP30(Indoor)	IP30(Indoor)	IP30(Indoor)	IP30(Indoor)
Operating Temp/Humidity	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH
Storage Temp/Humidity	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h
Curving (Concave )	YES	YES	YES	YES

Note: The Specifications are for reference, actual values may
