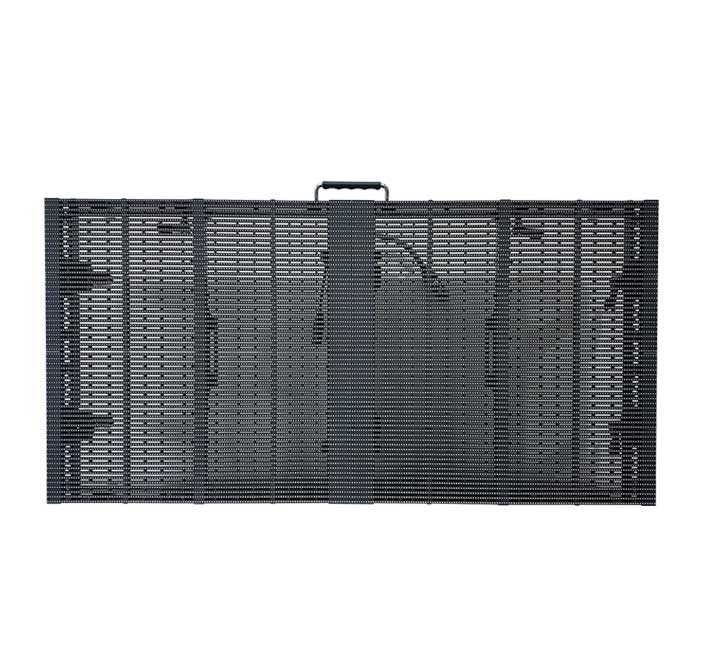

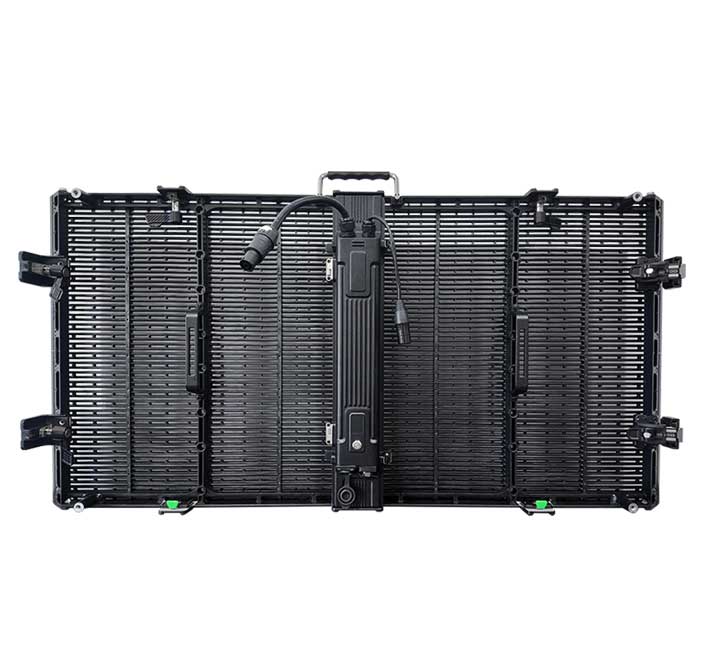

TR Series

This design for rental application, it’s ultra-thin, super light-weight, only 11kg/sqm, all these help to save transport cost, as well as the installation time and labor cost. Pixel pitch is 3.91mm in width and 7.81mm in height, gives the screen a quite high transparency.

Model	TR3.9-7.8	TR3.9-7.8
Pixel Pitch-mm	3.91-7.81mm	3.91-7.81mm
Pixel Density-pixels/m2	32768	32768
LED type	SMD1921	SMD1921
Module Dimension	500x125mm	500x125mm
Module Resolution	128 x 16	128 x 16
Panel Dimension	500 x 1000 x 68mm	500 x 1000 x 68mm
Panel Resolution	256 x 64	256 x 64
Panel Weight	8 kgs	8 kgs
Typical Brightness(nits)	5000	2500
Viewing Angle	H160°/V140°	H160°/V140°
Refresh Rate	≥3840Hz	≥3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	750	720
Avg. Power Consumption (W/m²)	240	230
Serviceability	Front&Rear	Front&Rear
IP Rating	IP65(Outdoor)	IP65(Outdoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h
Curving (Optional curved locks)	YES	YES

Model

TR3.9-7.8

Pixel Pitch-mm

3.91-7.81mm

Pixel Density-pixels/m2

32768

LED type

SMD1921

Module Dimension

500x125mm

Module Resolution

128 x 16

Panel Dimension

500 x 1000 x 68mm

Panel Resolution

256 x 64

Panel Weight

8 kgs

Typical Brightness(nits)

5000

2500

Viewing Angle

H160°/V140°

Refresh Rate

≥3840Hz

Operating Power Source

100 - 240 V, 50 - 60 Hz

Max. Power Consumption (W/m²)

750

720

Avg. Power Consumption (W/m²)

240

230

Serviceability

Front&Rear

IP Rating

IP65(Outdoor)

Operating Temp/Humidity

-20°~ 55°C, 10~90% RH

Storage Temp/Humidity

-40°~ 60°C, 10~90% RH

Life Span

100,000 h

Curving (Optional curved locks)

YES
