XCOB LED display -BGLOPTO

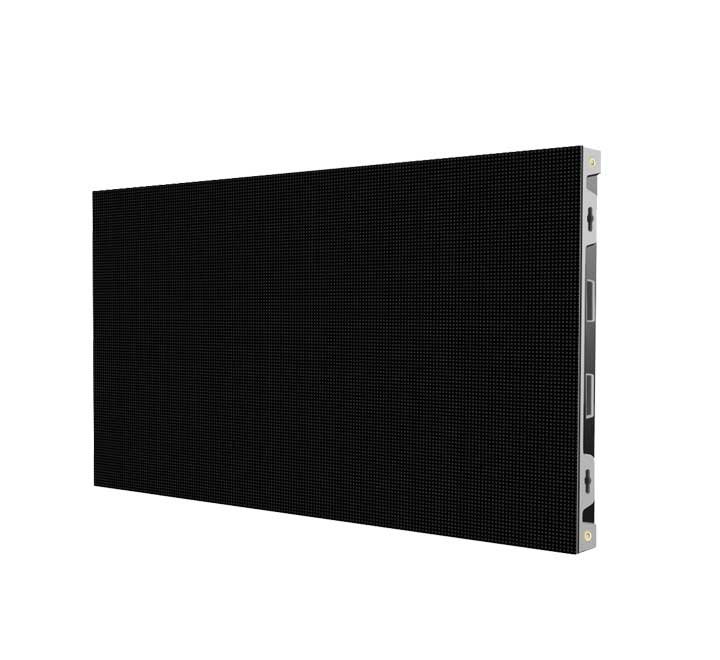

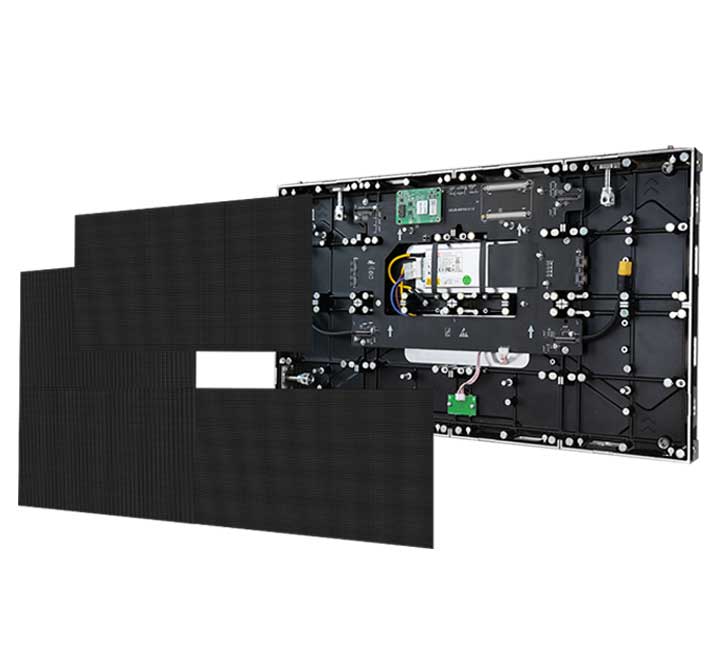

X Series 600x337.5mm COB

X COB Series is our innovation displays which is a type of LED display technology based on COB (Chip-on-Board).

This series offers high brightness, excellent color reproduction, and energy efficiency.

And the high pixel density of COB displays ensures sharp and detailed images, making them suitable for applications that require close viewing distances, such as indoor signage, retail displays, and control room monitors.

Characteristic

Cutting-edge full flip-chip COB (Chip-on-Board) technology.

DCI color gamut.

Uniform light source.

High contrast, high grayscale, high refresh rate.

Energy-efficient.

Seamless design, 16:9.

Specifications

Accessory

Gallery

Model	XCOB0.9	XCOB1.2	XCOB1.5
Pixel Pitch(mm)	0.9375	1.25	1.5625
Pixel Density(pixels/m2)	1,137,778	640,000	409,600
LED type	IMD4 IN 1	SMD 3 IN 1	SMD 3 IN 1
Module Dimension	150 x 168.75mm	150 x 168.75mm	150 x 168.75mm
Module Resolution	160 x 180	120 x 135	96 x 108
Cabinet Dimension	600 x 337.5 x 41 mm	600 x 337.5 x 41 mm	600 x 337.5 x 41 mm
Cabinet Resolution	640 x 360	480 x 270	384 x 216
Cabinet Type and Material	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium
Cabinet Weight	4.8 kg (10.56 lb)	4.8 kg (10.56 lb)	4.8 kg (10.56 lb)
Viewing Angle	H160°/V160°	H160°/V160°	H160°/V160°
Brightness	≥600 nits	≥600 nits	≥600 nits
Refresh Rate	≥3840 Hz	≥3840 Hz	≥3840 Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption	120 W/panel	110 W/panel	112 W/panel
Avg. Power Consumption	45 W/panel	42 W/panel	43 W/panel
Serviceability	Front	Front	Front
IP Rating	IP30(Indoor)	IP30(Indoor)	IP30(Indoor)
Operating Temp/Humidity	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH
Storage Temp/Humidity	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h
Curving (Concave )	YES	YES	YES

Note: The Specifications are for reference, actual values may vary.
