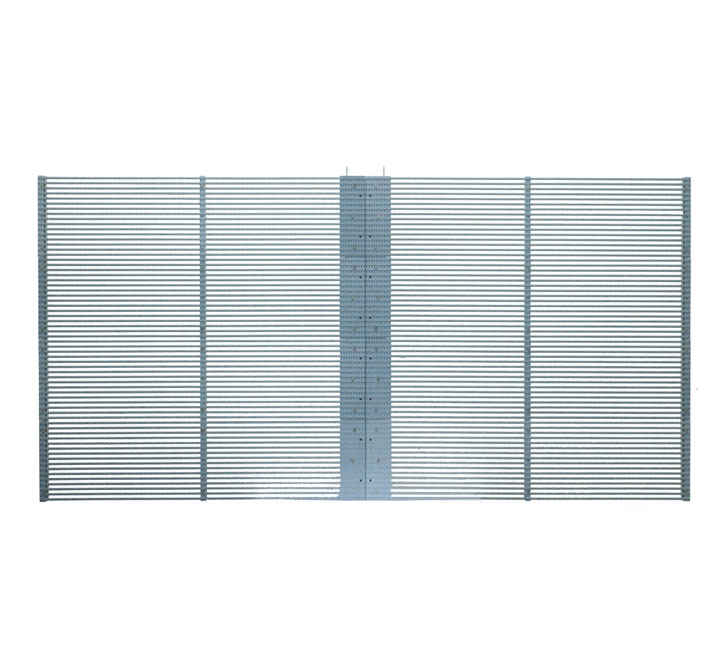

  • TF 1

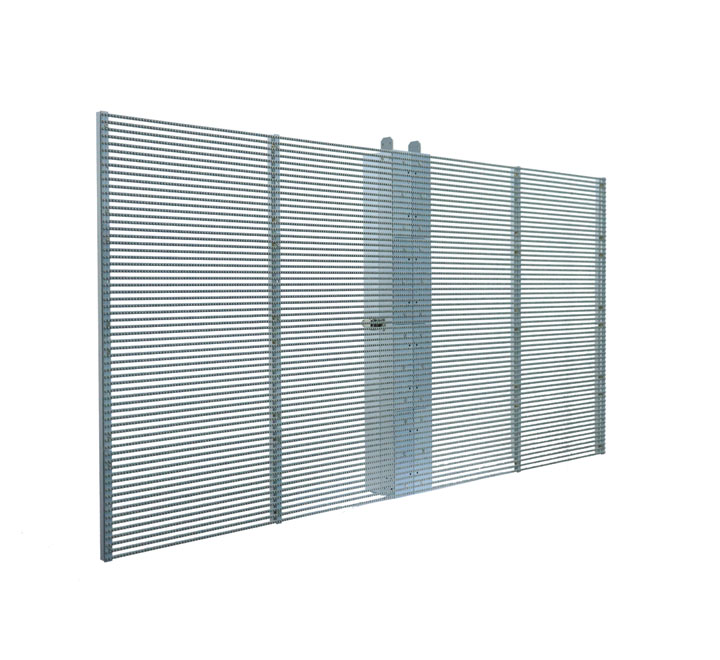

  • TF 2

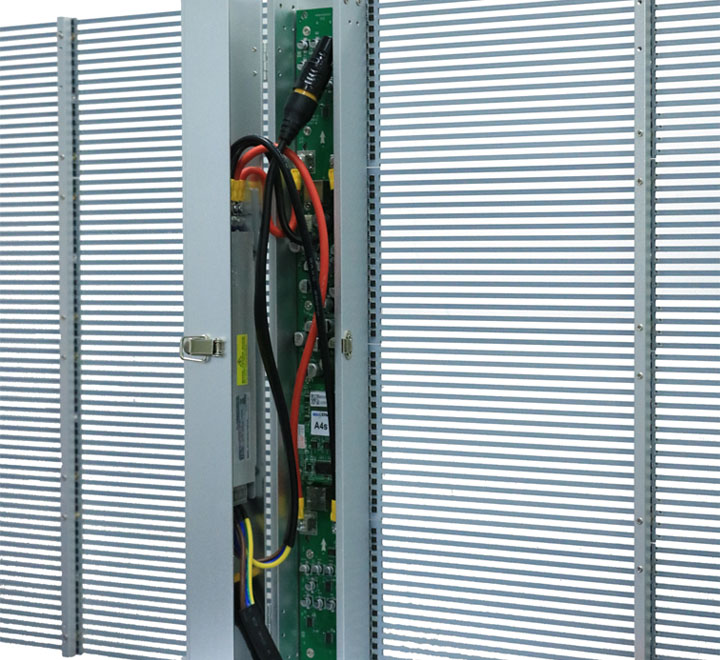

  • TF 3

TF Series Indoor

This design for fixed application, it’s ultra-thin, super light-weight, only 11kg/sqm, all these help to save transport cost, as well as the installation time and labor cost. Pixel pitch is 3.91mm in width and 7.81mm in height, gives the screen a quite high transparency.

With high transparency, it can meet the lighting requirements and viewing angle between floors, glass windows, facade lighting structure perfect.



Characteristic

Panel thickness 68mm.

Light-weight, only 11kgs per sqm.

High contrast ratio.

Different brightness for outdoor environment.

High transparency.

Specifications

Accessory

Gallery

Model TLF3.9-7.8 TLF3.9-7.8
Pixel Pitch-mm 3.91-7.81mm 3.91-7.81mm
Pixel Density-pixels/m2 32768 32768
LED type SMD1921 SMD1921
Module Dimension 500x 62.5mm 500x 62.5mm
Module Resolution 128 x 8 128 x 8
Panel Dimension 500 x 1000 x 68mm 500 x 1000 x 68mm
Panel Resolution 256 x 64 256 x 64
Panel Weight  5.5 kg  5.5 kg
Typical Brightness(nits) 5000 2500
Viewing Angle H160°/V140° H160°/V140°
Refresh Rate ≥3840Hz ≥3840Hz
Operating Power Source 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²) 750 720
Avg. Power Consumption  (W/m²) 240 230
Serviceability Front&Rear Front&Rear
IP Rating IP43(indoor) IP43(indoor)
Operating Temp/Humidity -20°~ 55°C, 10~90% RH  -20°~ 55°C, 10~90% RH
Storage Temp/Humidity -40°~ 60°C, 10~90% RH  -40°~ 60°C, 10~90% RH
Life Span 100,000 h 100,000 h
Curving (Optional curved locks) YES YES

Note: The Specifications are for reference, actual values may vary.
