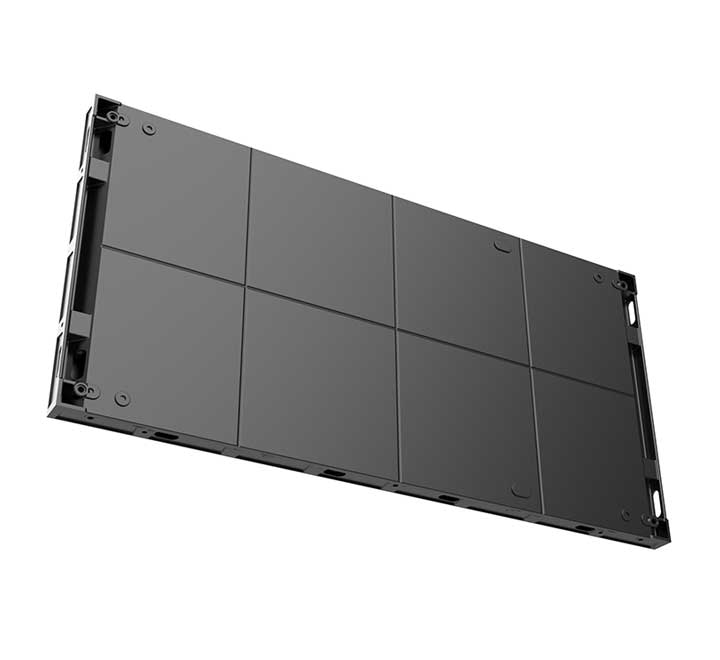

LT Series Multiple Cabinet Sizes

LT Pro Series is engineered for high-quality indoor LED display projects, with its lightweight and die-cast aluminum design, it oﬀers easy installation and front maintenance. What's more, it comes with 6 diﬀerent cabinet sizes for choice, ultra-thin 40mm, the ability to create right-angle shapes, and the option for GOB technology.

Characteristic

Front maintenance with magnet

Total 6 different cabinet sizes for choice.

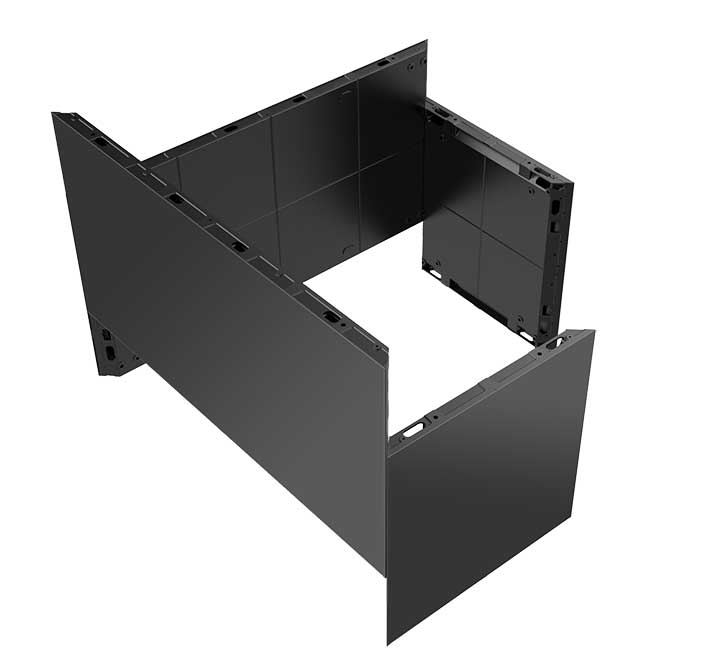

Available to form right-angle shapes in LED display cabinets.

Die-casting aluminum cabinets

Lightweight design

GOB choice

Specifications

Accessory

Gallery

Model	LT Pro1.9	LT Pro2.6	LT Pro2.9	LT Pro3.9
Pixel Pitch-mm	1.9	2.6	2.97	3.91
Pixel Density-pixels/m2	277008	147929	113367	65410
LED type	SMD1515	SMD1515	SMD1515	SMD2020
Module Dimension	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm
Module Resolution	128 x 128	96 x 96	84 x 84	64 x 64
Panel Dimension (6 sizes optional)	1000 x 250 x 40mm / 1000 x 500 x 40mm / 750 x 250 x 40mm / 750 x 500 x 40mm / 500 x 500 x 40mm / 500 x 250 x 40mm
Panel Resolution ((for 1000x250mm))	512 x 128 pixels	384 x 96 pixels	336 x 84 pixels	256 x 64 pixels
Panel Weight (for 1000x250mm)	5.6 kg	5.6 kg	5.6 kg	5.6 kg
Typical Brightness(nits)	800	1000	1000	1000
Viewing Angle	H160°/V160°	H160°/V140°	H160°/V140°	H160°/V140°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	720	732	718	710
Avg. Power Consumption (W/m²)	230	234	230	227
Serviceability	Front	Front	Front	Front
IP Rating	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h

Note: The Specifications are for reference, actual values may vary.
