Floor LED display -BGLOPTO

Floor Series

Floor series is a digital display device customized for indoor and outdoor stage and background environments. It can build a ﬂoor screen with excellent display eﬀects.

Characteristic

Waterproof and moisture-proof.

Super load capacity.

Wear-resistant and ﬂame-retardant.

Silent heat and dissipation.

Optional interactive function.

Specifications

Accessory

Gallery

Model	Floor2.5i	Floor2.6i	Floor2.9i	Floor3.9i/O	Floor4.8O	MB5.2O
Pixel Pitch-mm	2.5	2.6	2.97	3.91	4.8	5.2
Pixel Density-pixels/m2	160000	147456	112896	65536	43264	36864
LED type	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020

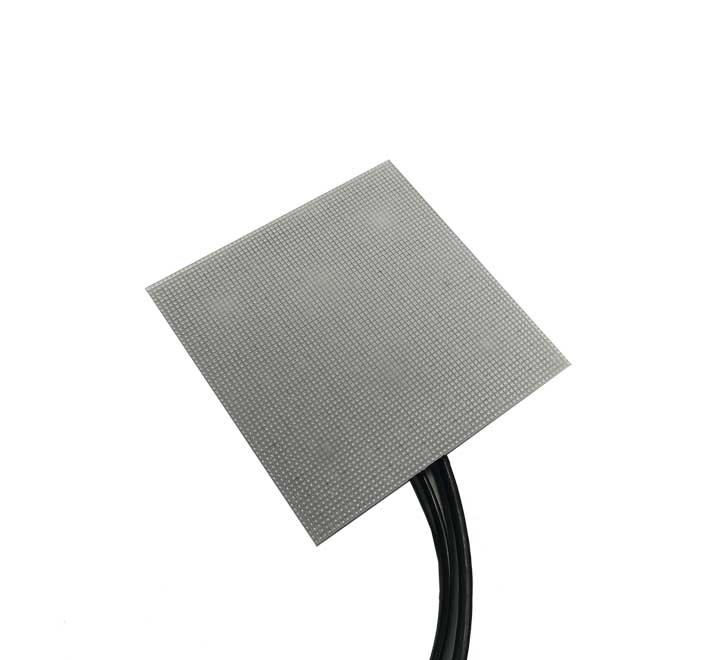

Module Dimension	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm
Module Resolution	100 x 100	96 x 96	84 x 84	64 x 64	52 x 52	48 x 48

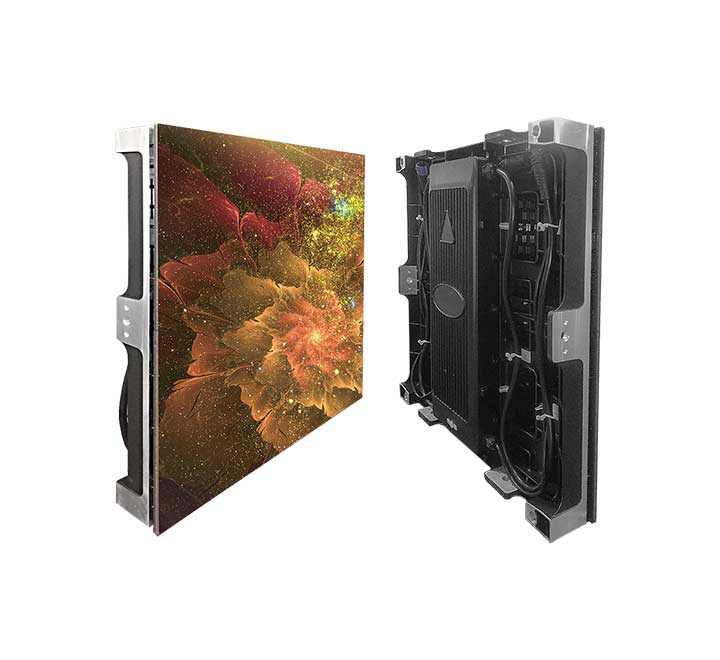

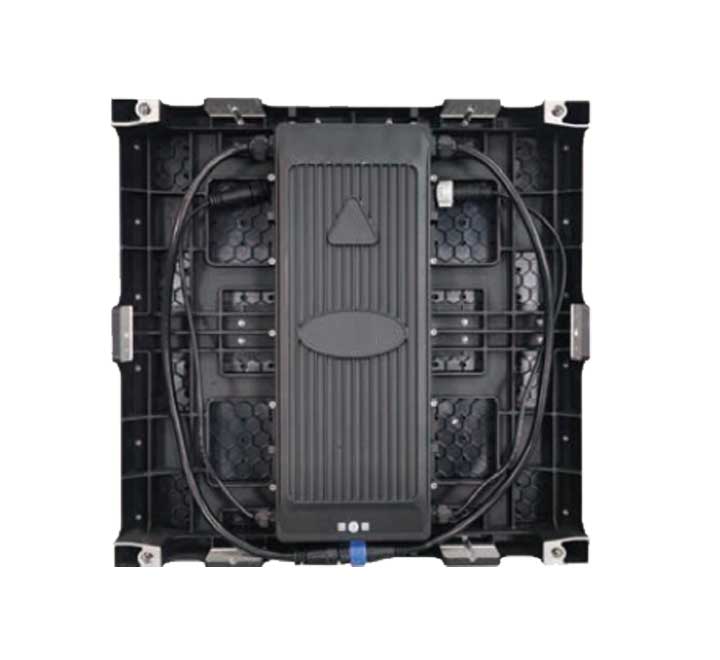

Panel Dimension	500 x 500mm	500 x 500mm	500 x 500mm	500 x 500mm	500 x 500mm	500 x 500mm
Panel Resolution(dots)	200 x 200	192 x 192	168 x 168	128 x 128	104 x 104	96 x 96
Panel Weight	25kgs	25kgs	25kgs	25kgs	25kgs	25kgs
Typical Brightness(nits)	1000	1000	1000	1000 /5000	5000	5000
Viewing Angle	H160°/V160°	H160°/V140°	H160°/V140°	H160°/V140°	H160°/V140°	H160°/V140°
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption	640(W/m²)	640(W/m²)	640(W/m²)	640(W/m²)	720(W/m²)	720
Avg. Power Consumption	300(W/m²)	300(W/m²)	300(W/m²)	300(W/m²)	330(W/m²)	330
Serviceability	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP54(Indoor)	IP54(Indoor)	IP54(Indoor)	IP54/IP68	IP68	IP68
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h	100,000 h	100,000 h

Note: The Specifications are for reference, actual values may vary.
