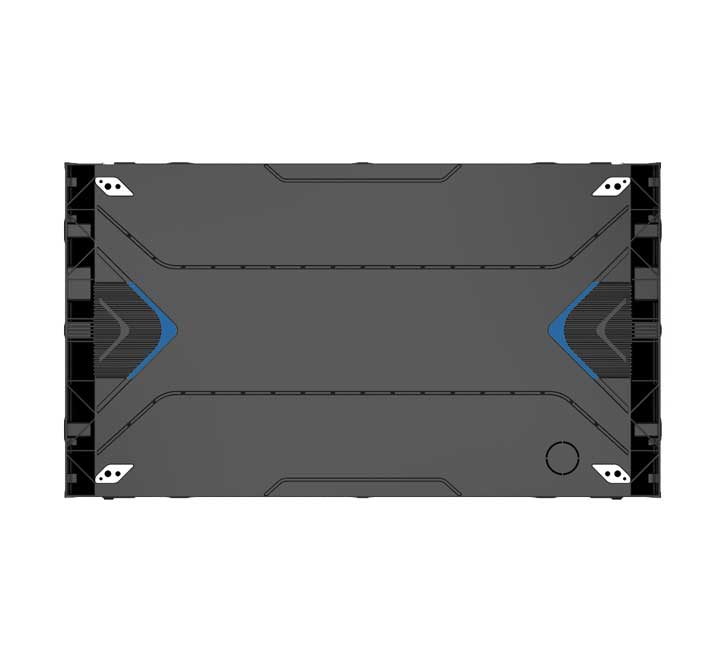

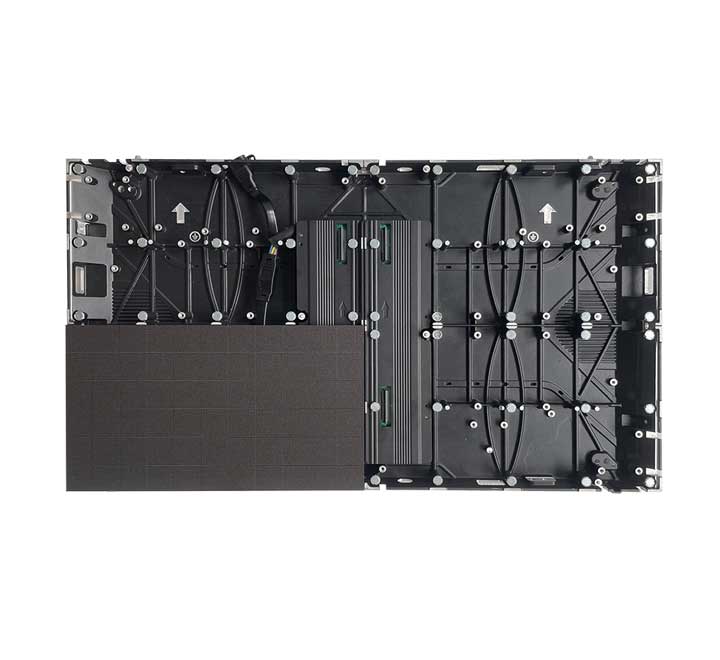

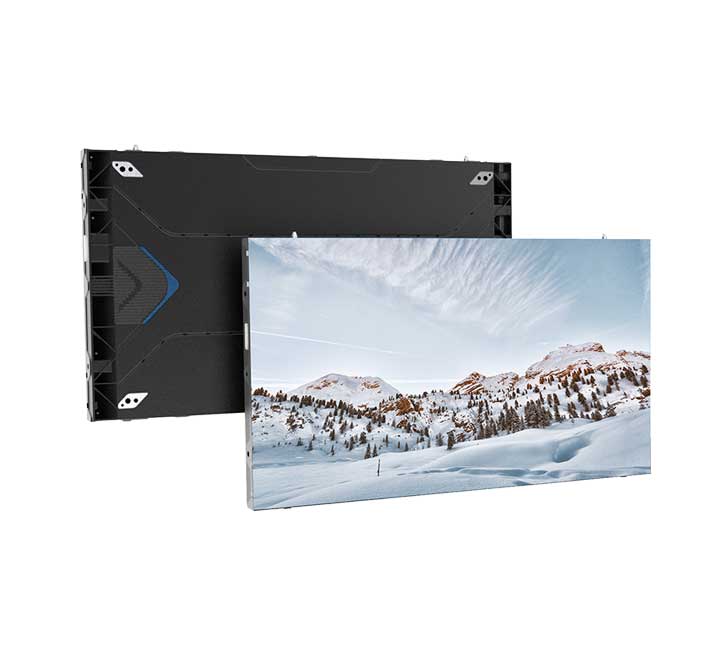

CHD Indoor SMD GOB

CHD series is idesigned for indoor applications where high precision, durability, and seamless visuals are key. With GOB (Glue on Board) technology, this display offers superior protection against dust, moisture, and impact, making it highly durable for high-traffic environments. Its lightweight design and ultra-thin profile allow for easy installation, making it perfect for retail stores, corporate spaces, control rooms, and high-end commercial displays.

This versatile, high-performance LED display is designed for seamless integration, easy maintenance, and creative installation possibilities, making it the ideal solution for dynamic indoor applications.

Characteristic

Model	CHD0.9	CHD1.2	CHD1.5	CHD1.8
Pixel Pitch(mm)	1.25	1.5625	1.875	2.5
Pixel Density(pixels/m2)	640,000	409,600	284,444	160,000
LED type	SMD1010	SMD1212	SMD1515	SMD2121
Module Dimension	150 x 168.75mm	300 x 168.75mm	300 x 168.75mm	300 x 168.75mm
Module Resolution	120 x 135	192 x 108	160 x 90	120 x 67
Cabinet Dimension	600 x 337.5 x 29 mm	600 x 337.5 x 29 mm	600 x 337.5 x 29 mm	600 x 337.5 x 29 mm
Cabinet Resolution	480 x 270	384 x 216	320 x 180	240 x 135
Cabinet Type and Material	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium
Cabinet Weight	4.8 kg (10.56 lb)	4.8 kg (10.56 lb)	4.8 kg (10.56 lb)	4.8 kg (10.56 lb)
Viewing Angle	H160°/V160°	H160°/V160°	H160°/V160°	H160°/V160°
Brightness	≥800 nits	≥800 nits	≥800 nits	≥800 nits
Refresh Rate	≥3.840 Hz	≥3.840 Hz	≥3.840 Hz	≥3.840 Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption/panel	142W	135W	138W	120W
Avg. Power Consumption /panel	45W	42W	43W	40W
Serviceability	Front	Front	Front	Front
IP Rating	IP30(Indoor)	IP30(Indoor)	IP30(Indoor)	IP30(Indoor)
Operating Temp/Humidity	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH
Storage Temp/Humidity	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h

Note: The Specifications are for reference, actual values may vary.
