High brightness SMD LED display -BGLOPTO

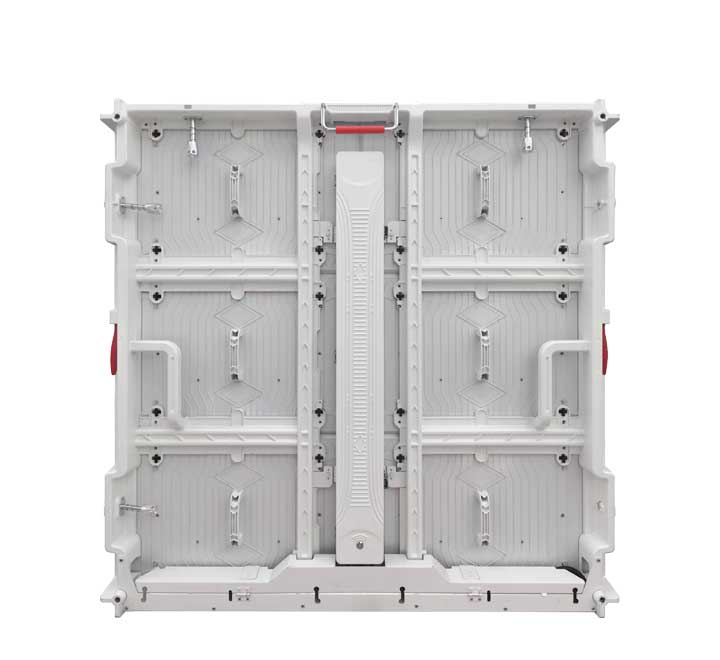

FP Series 960x960mm

FP series is our advanced outdoor fixed LED display, it’s with great characteristics such as high brightness and refresh rate etc, widely used in high-end market.

Applicable for commercial center, airport terminal, big-scale conference, city’s landmark area, exhibition center and other outdoor spaces.

Characteristic

Low power consumption.

High refreshing more than 3840Hz.

High brightness.

Die-casting aluminum material.

Light-weight 25.5kgs/panel, panel size 960 x 960mm.

Waterproof IP66.

Panel thickness is 88mm

Both front and rear maintenance.

Easy to install and maintain.

Specifications

Accessory

Gallery

Model	FP5.7	FP6.7	FP8	FP10
Pixel Pitch-mm	5.7	6.67	8	10
Pixel Density-pixels/m2	30625	22478	15625	10000
LED type	SMD2727	SMD2727	SMD2727	SMD2727
Module Dimension	480 x 320mm	480 x 320mm	480 x 320mm	480 x 320mm
Module Resolution	84 x 56	72 x 48	60 x 40	48 x 32
Panel Dimension	960 x 960 x 88mm	960 x 960 x 88mm	960 x 960 x 88mm	960 x 960 x 88mm
Panel Resolution	168 x 168	144 x 144	120 x 120	96 x 96
Panel Weight	25.5 kg	25.5 kg	25.5 kg	25.5 kg
Typical Brightness(nits)	≥9000	≥9000	≥9000	≥9000
Viewing Angle	H140°/V120°	H140°/V120°	H140°/V120°	H140°/V120°
Refresh Rate	≥7680Hz	≥7680Hz	≥7680Hz	≥7680Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	438	430	435	439
Avg. Power Consumption (W/m²)	144	142	144	144
Serviceability	Front&Rear	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP66(Outdoor)	IP66(Outdoor)	IP66(Outdoor)	IP66(Outdoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h

Note: The Specifications are for reference, actual values may vary.
