Magic Block Series

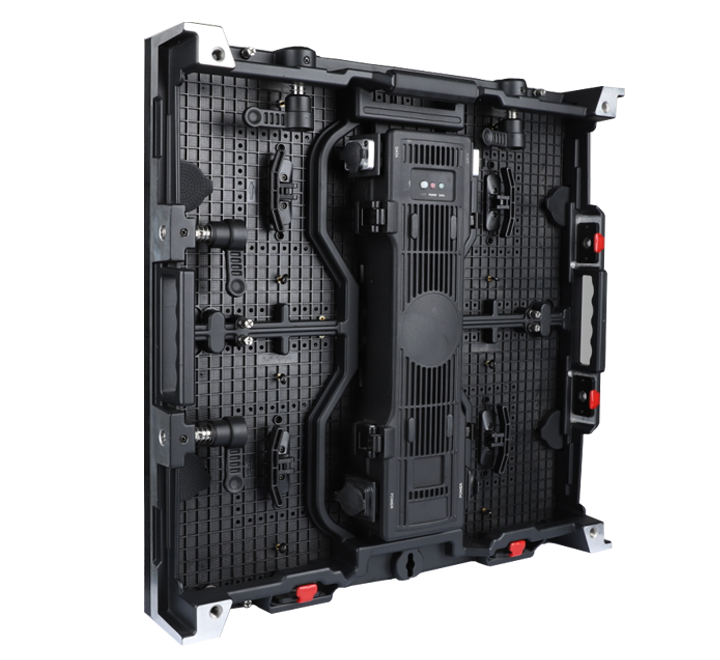

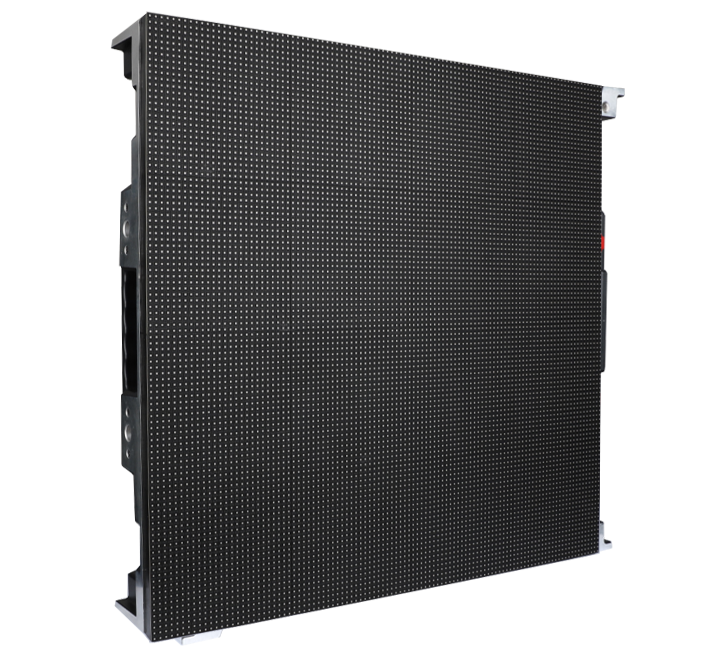

MB Series is the 2nd generation of multi-functional product designed with die-casting aluminum cabinet material. Both indoor and outdoor, from pitch 1.9mm to pitch 6.944mm, share exactly the same design of cabinet frame, control box and accessories, which makes it is possible for clients to set up safety stocks or upgrade the screen resolutions within budget. The same cabinet frame, power box and accessories can be shared for different pixel pitch. They are also can be shared for both indoor and outdoor application.

Characteristic

Different pixel pitch screen matches the same standard of cabinet frame, control system, power supply, signal & Power Cables, flight case packing.

500x500mm and 500x750mm both indoor and outdoor.

Stack, hanging or wall mounted, flat or curved surface, it can greatly meet various installation needs.

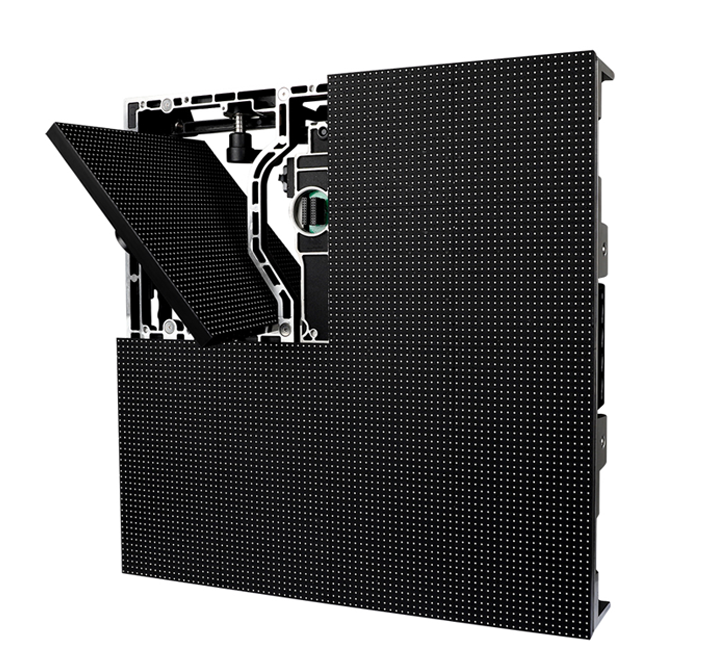

Front and back maintenance.

Specifications

Accessory

Gallery

Model	MB1.9i	MB2.5i	MB2.6i	MB2.9i	MB3.9i	MB4.8i	MB5.9i
MB Series indoor
Pixel Pitch-mm	1.9	2.5	2.6	2.97	3.91	4.8	5.95
Pixel Density-pixels/m2	277008	160000	147929	113367	65410	43403	28247
LED type	SMD1515	SMD2020	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Module Dimension	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm
Module Resolution	128 x 128	100 x 100	96 x 96	84 x 84	64 x 64	52 x 52	42 x 42
Panel Dimension（2 sizes）	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm
Panel Resolution(dots)	256 x 256, 256 x 384	200 x 200, 200 x 300	192 x 192, 192 x 288	168 x 168, 168 x 252	128 x 128, 128 x 192	104 x 104, 104 x 156	84 x 84, 84 x 126
Panel Weight	8.5 kg (18.7 lbs) 13kg	8.5 kg (18.7 lbs)	8.5 kg (18.7 lbs)	8.5 kg (18.7 lbs)	8.5 kg (18.7 lbs)	8.5 kg (18.7 lbs)	8.5 kg (18.7 lbs)
Typical Brightness(nits)	800	1000	1000	1000	1000	1000	1000
Viewing Angle	H160°/V160°	H160°/V160°	H160°/V140°	H160°/V140°	H160°/V140°	H160°/V140°	H160°/V140°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	720	720	720	720	720	720	720
Avg. Power Consumption (W/m²)	230	230	230	230	230	230	230
Serviceability	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h	100,000 h	100,000 h	100,000 h
Curving (Optional curved locks)	YES	YES	YES	YES	YES	YES	YES

Note: The Specifications are for reference, actual values may vary.

Model	MB2.6O	MB3.9O	MB4.8O	MB5.9O
MB Series outdoor
Pixel Pitch-mm	2.6	3.91	4.8	5.95
Pixel Density-pixels/m2	147929	65410	43403	28247
LED type	SMD1515	SMD1921	SMD1921	SMD1921
Module Dimension	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm
Module Resolution	96 x 96	64 x 64	52 x 52	42 x 42
Panel Dimension	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm	500 x 500 x 88mm, 500 x 750 x 88mm
Panel Resolution	192 x 192, 192 x 288	128 x 128, 128 x 192	104 x 104, 104 x 156	84 x 84, 84 x 126
Panel Weight	8.9 kg (19.58 lbs)	8.9 kg (19.58 lbs)	8.9 kg (19.58 lbs)	8.9 kg (19.58 lbs)
Typical Brightness(nits)	5500	5500	5500	5500
Viewing Angle	H160°/V140°	H160°/V140°	H160°/V140°	H160°/V140°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	750	692	728	715
Avg. Power Consumption (W/m²)	240	221	233	229
Serviceability	Front&Rear	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP65(Outdoor)	IP65(Outdoor)	IP65(Outdoor)	IP65(Outdoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h
Curving (Optional curved locks)	YES	YES	YES	YES

Note: The Specifications are for reference, actual values may vary.
