RP Series Indoor&Outdoor

Our RP series LED display is designed for versatility and high-performance visual impact. Supporing an ultra-high refresh rate of up to 7680Hz, it ensures smooth and ﬂicker-free visuals for both live events and broadcast environments. Available in two cabinet sizes, 500x500mm and 500x1000mm, the panels can be freely combined to suit various stage designs and setups.

With a lightweight, durable design and quick-lock system, it's ideal for concerts, exhibitions, conferences, and other temporary installations.

Characteristic

Quick Installation.

Lightweight & Strong: Die-cast aluminum frame for durability and ease of handling.

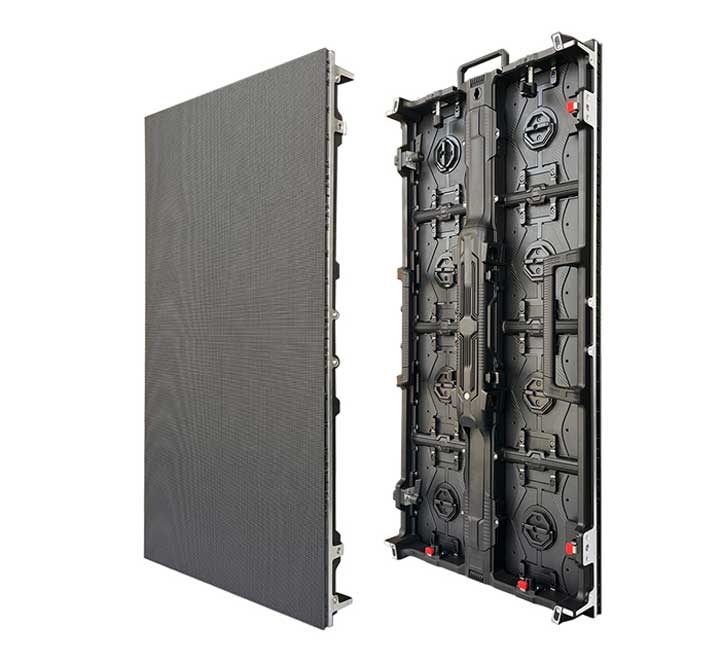

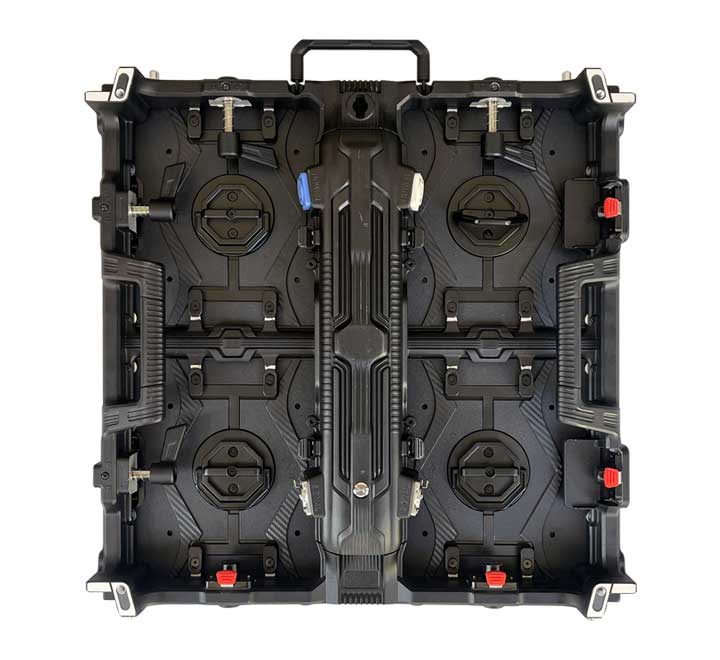

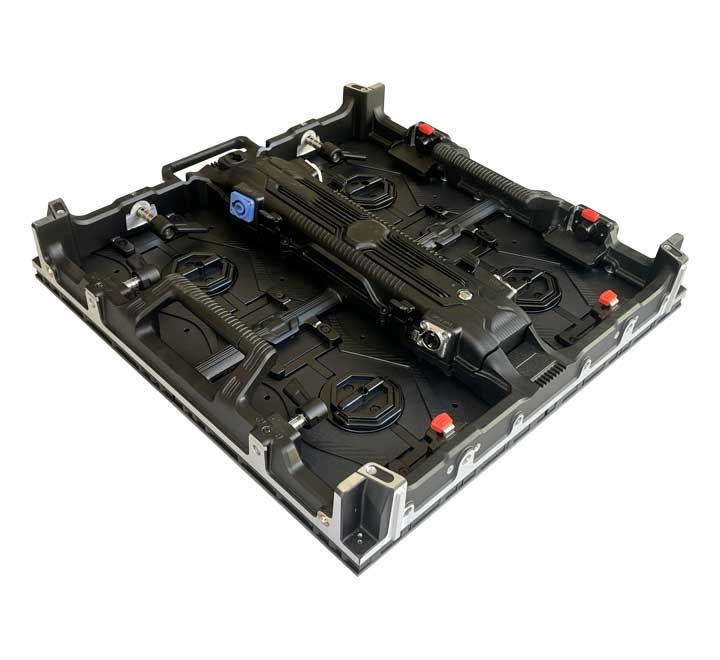

Flexible Cabinet Size: Mix 500x500mm & 500x1000mm freely.

Ultra-Smooth Playback

Strong Rental Adaptability

Seamless Splicing

Modular Design

Specifications

Accessory

Gallery

Model	RP1.9i	RP2.6i	RP2.9i	RP3.9i
RP Series Indoor
Pixel Pitch-mm	1.9	2.6	2.97	3.91
Pixel Density-pixels/m2	277,008	147,929	113,367	65,410
LED type	SMD1515	SMD1515	SMD1515	SMD2020
Module Dimension	250 x 250mm	250 x 250mm	250 x 250mm	250 x 250mm
Module Resolution	128 x 128	96 x 96	84 x 84	64 x 64
Panel Dimension（2 sizes）	500 x 500 x 88mm 500 x 1000 x 88mm	500 x 500 x 88mm 500 x 1000 x 88mm	500 x 500 x 88mm 500 x 1000 x 88mm	500 x 500 x 88mm 500 x 1000 x 88mm
Panel Resolution	256 x 256, 256 x 512	192 x 192, 192 x 384	168 x 168, 168 x 336	128 x 128, 128 x 256
Panel Weight	8.5 kg, 13kg	8.5 k,g 13kg	8.5 kg, 13kg	8.5 kg, 13kg
Typical Brightness(nits)	800	1000	1000	1000
Viewing Angle	H160°/V160°	H160°/V140°	H160°/V140°	H160°/V140°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	712	730	728	722
Avg. Power Consumption (W/m²)	228	234	233	231
Serviceability	Front&Rear	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)	IP43(Indoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h
Curving (Optional curved locks)	YES	YES	YES	YES

Note: The Specifications are for reference, actual values may vary.

Model	RP2.9O	RP3.9O	RP4.8O
RP Series Outdoor
Pixel Pitch-mm	2.97	3.91	4.8
Pixel Density-pixels/m2	112,896	65,410	43,403
LED type	SMD1415	SMD1921	SMD1921
Module Dimension	250 x 250mm	250 x 250mm	250 x 250mm
Module Resolution	84 x 84	64 x 64	52 x 52
Panel Dimension（2 sizes）	500 x 500 x 88mm 500 x 1000 x 88mm	500 x 500 x 88mm 500 x 1000 x 88mm	500 x 500 x 88mm 500 x 1000 x 88mm
Panel Resolution	168 x 168, 168 x 336	128 x 128, 128 x 256	104 x 104, 104 x 208
Panel Weight	8.5 kg, 13kg	8.5 kg, 13kg	8.5 kg, 13kg
Typical Brightness(nits)	4500	5500	5500
Viewing Angle	H160°/V140°	H160°/V140°	H160°/V140°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/m²)	748	750	762
Avg. Power Consumption (W/m²)	239	240	244
Serviceability	Front&Rear	Front&Rear	Front&Rear
IP Rating	IP65(Outdoor)	IP65(Outdoor)	IP65(Outdoor)
Operating Temp/Humidity	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH	-20°~ 55°C, 10~90% RH
Storage Temp/Humidity	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH	-40°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h
Curving (Optional curved locks)	YES	YES	YES

Note: The Specifications are for reference, actual values may vary.
