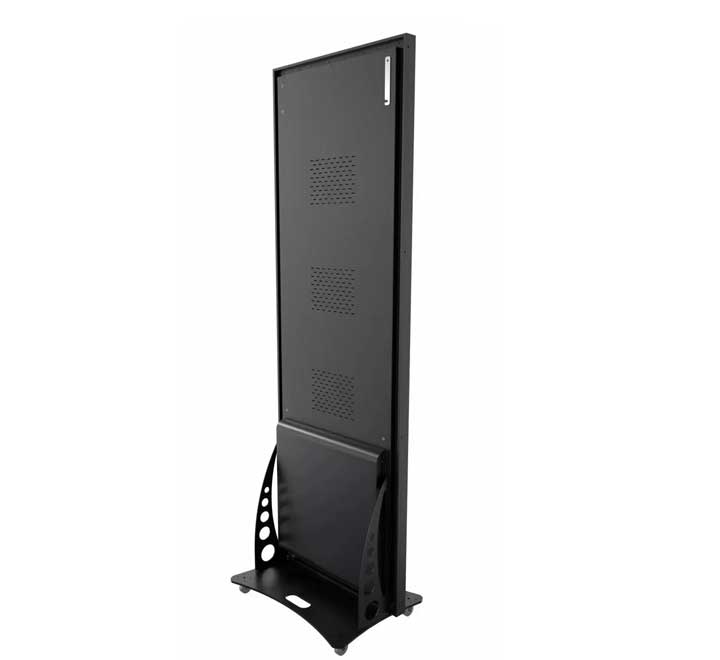

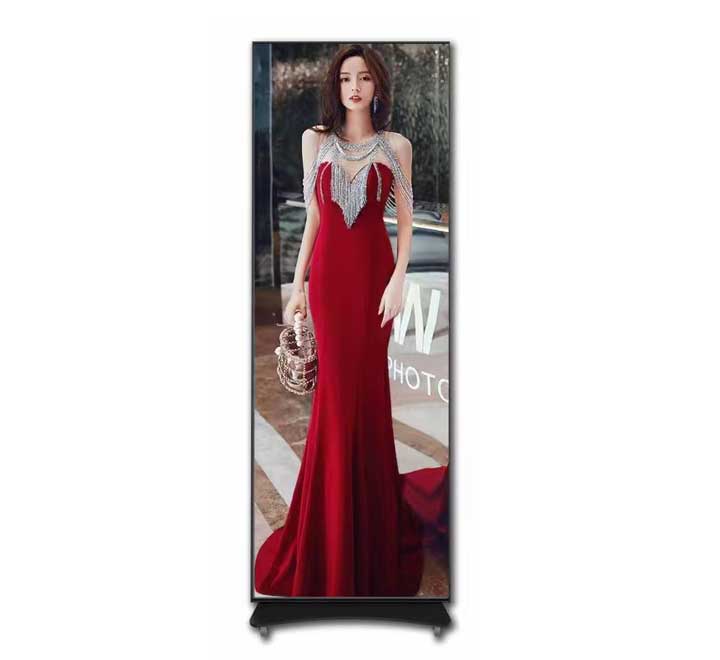

LED Advertising Kiosk -BGLOPTO

Advertising Kiosk

The digital LED advertising kiosk are thin, light weight displays that are movable so the displays can be positioned in almost location. It can be used separetately or combined for large screen.

The digital content can also be updated locally via USB or HDMI, or remotely from any loaction using a CMS.

LED advertising is widely used in shopping mall, events, transportation hubs, and the hospitality industry.

Characteristic

Movable LED poster for advertising.

Easy management.

Ultra-slim and light-weight aluminum casing.

Dynamic and engaging content.

Multiple input sources to control content via Wifi, LAN and USB.

Durability.

Wall mounted or freestanding, flat or titled.

Specifications

Accessory

Gallery

Model	Kiosk1.5	Ｋiosk1.8	Kiosk2.0	Ｋｉｏｓｋ2.5
Pixel Pitch(mm)	1.538	1.86	2	2.5
Pixel Density(pixels/m2)	422,500	288,906	250,000	160,000
LED type	SMD 3in1	SMD 3in1	SMD 3in1	SMD 3in1
Module Dimension	320 x 160mm	320 x 160mm	320 x 160mm	320 x 160mm
Module Resolution	208 x 104	172 x 86	160 x 80	128 x 64
Cabinet Dimension	640 x 1920mm	640 x 1920mm	640 x 1920mm	640 x 1920mm
Cabinet Resolution	416 x 1248	344 x 1032	360 x 960	256 x 768
Cabinet Type and Material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight	50kgs	50kgs	50kgs	50 kgs
Viewing Angle	H140°/V140°	H140°/V140°	H140°/V140°	H140°/V140°
Brightness	≥700 nits	≥700 nits	≥700 nits	≥700 nits
Refresh Rate	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Operating Power Source	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz	100 - 240 V, 50 - 60 Hz
Max. Power Consumption (W/Unit)	737	737	737	737
Avg. Power Consumption (W/Unit)	307	307	307	307
Serviceability	Front	Front	Front	Front
IP Rating	IP42(Indoor)	IP42(Indoor)	IP42(Indoor)	IP42(Indoor)
Operating Temp/Humidity	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH	-15°~ 55°C, 10~90% RH
Storage Temp/Humidity	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH	-20°~ 60°C, 10~90% RH
Life Span	100,000 h	100,000 h	100,000 h	100,000 h

Note: The Specifications are for reference, actual values may vary.
